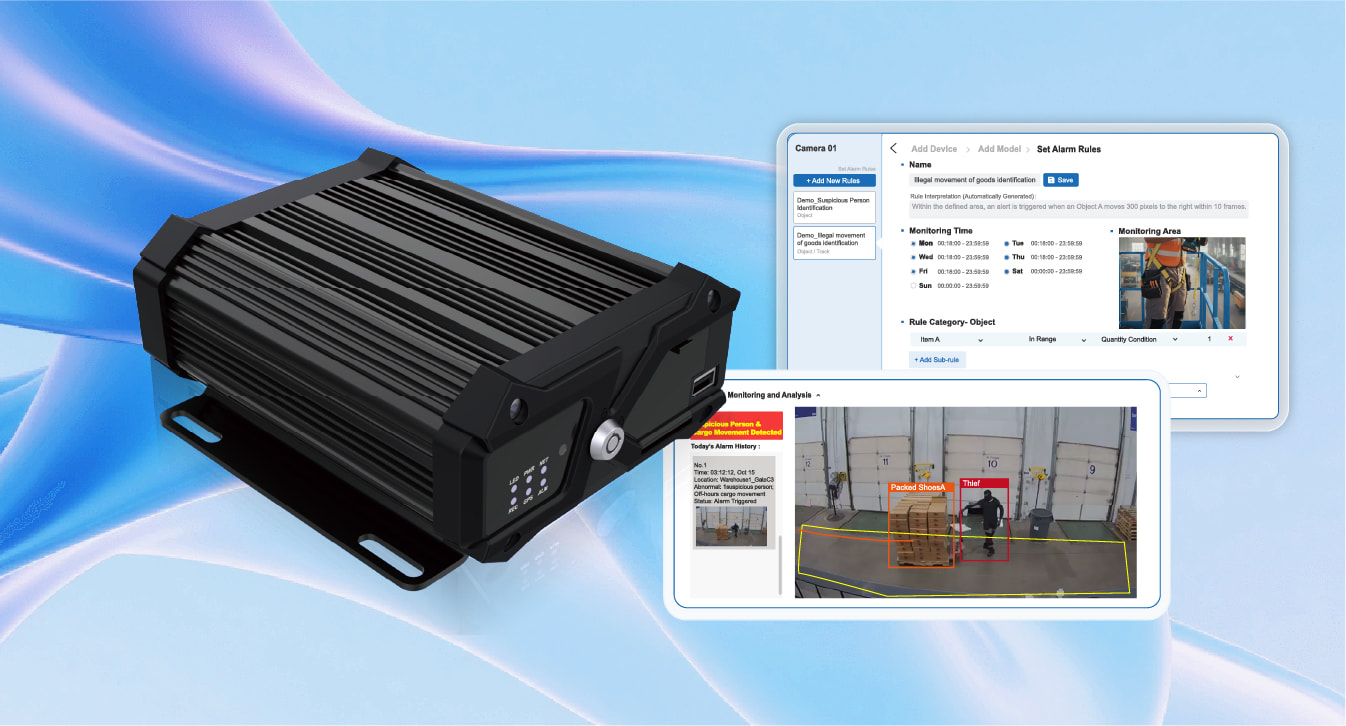

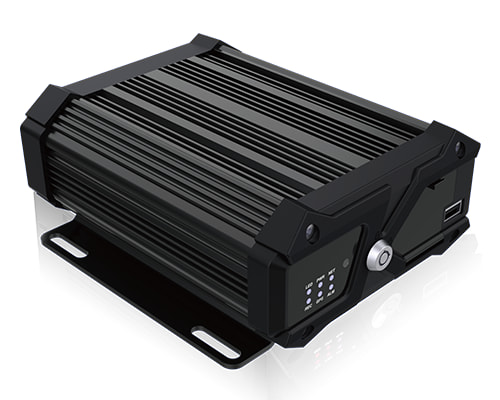

EAB016
Edge AI Box
Suitable for installing multiple algorithms
EAB016
- 8-Core TPU
- 16-channel high-definition video
- Supports 8K video
- Scalable LTE/5G/WIFI/BT options
- Suitable for extreme working environments
- Customizable
One device, empowering
your system with AI
The E-Song Edge AI Box is an edge device that runs AI models locally. It supports various AI algorithms, including object recognition, behavior detection, speech recognition, track objects or people, face search, and OCR, which can be combined. It is compatible with common systems and allows flexible AI detection and alert rule settings through an easy-to-use interface.
Working with ESLP, it offers a no-code solution for creating and deploying custom AI applications. The device also collects field data and uploads it to ESLP for continuous AI model optimization and performance improvement.
Cross-Model
Inference
Supports AI algorithms such as object recognition, speech recognition, object/person tracking, text recognition, and action recognition, and can simultaneously perform computations with multiple algorithms.

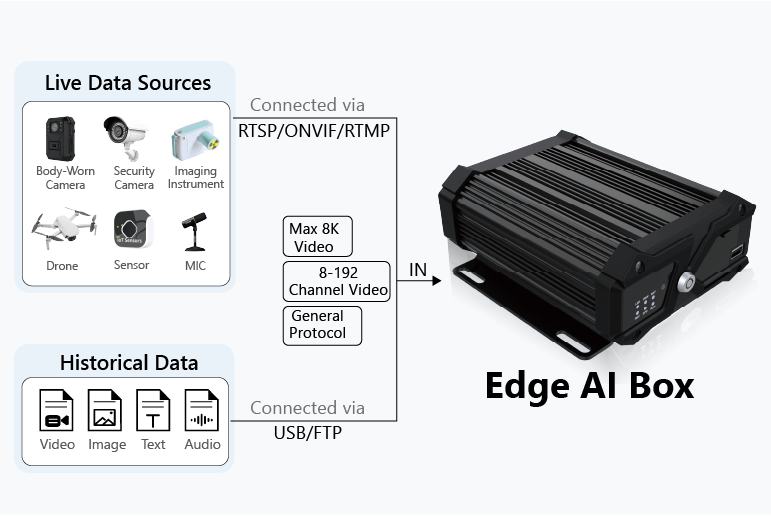

Compatible with
multiple devices
It analyzes live data in milliseconds (ms) from different types of cameras (CCTV, body cameras, drone cameras, etc.), audio/IoT devices via general protocols like RTSP, ONVIF, RTMP, Zigbee etc., as well as historical data via FTP or USB connection. It supports up to 8-192 channels live inference.

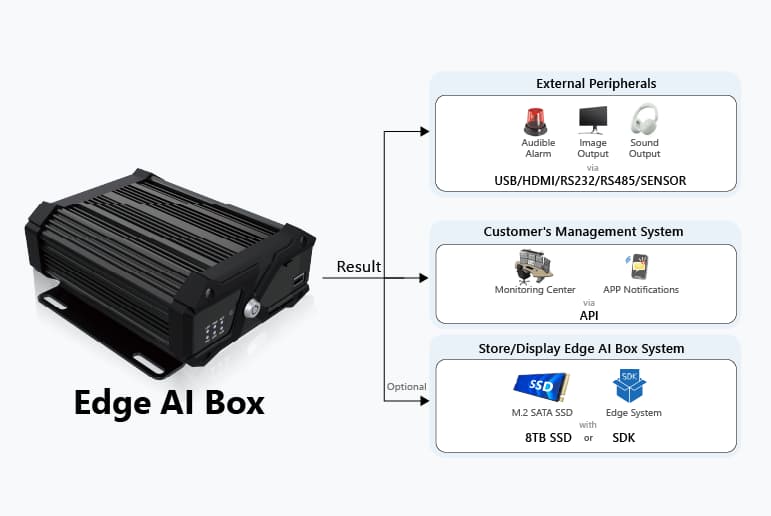

Output results
flexibly
Supports AI algorithms such as object recognition, speech recognition, object/person tracking, text recognition, and action recognition, and can simultaneously perform computations with multiple algorithms.
Easy to Use

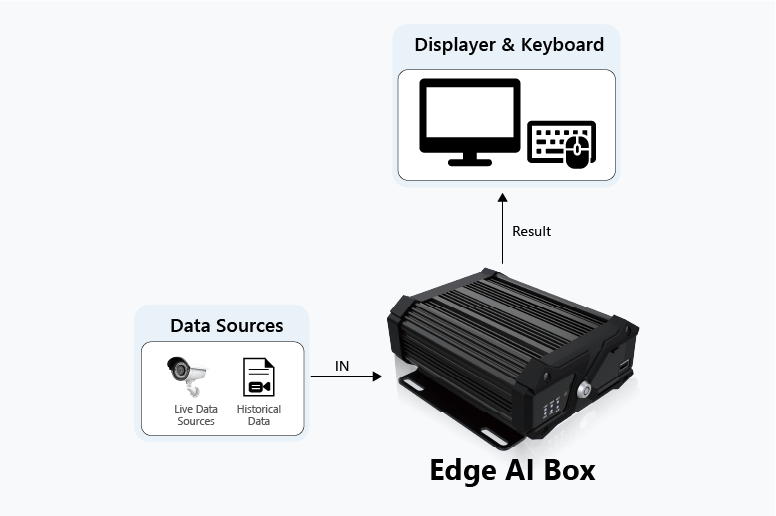

The E-Song Edge AI Box has an independent backend, allowing AI rule setup without coding. After connecting a keyboard, mouse, and display, it functions as an intelligent device, forming a complete AI application system with cameras and other data source devices.
Face/Liscence
Plate Blur
With the AI features of the Edge AI Box, specified faces or license plates in real-time video streams can be automatically blurred before the video is pushed to the visual interface, ensuring that low-privilege users cannot see restricted content.
-20~60°C Operating Temperature

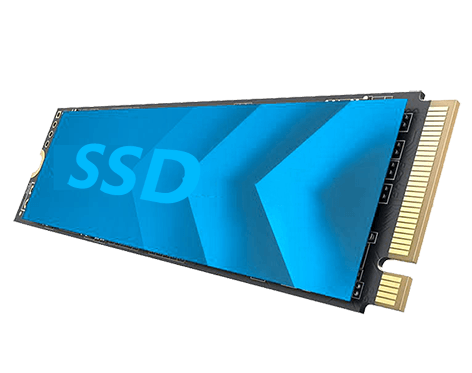

Supports 8TB
M.2 SATA SSD
Product Specifications of EAB008
Model No. | EAB016 |
Main CPU | 8 core A53@1.6GHz |
TPU | 16TOPs@INT8 |
32TOPs@INT4 | |
4 TFLOPs @FP16/BF16 | |
0.5 TFLOPs@FP32 | |
Memory | 4GB LPDDR4x @4266Mbps 32Bit |
EMMC | 32GB, maximum support up to 128GB |
Video Decoding | 16 CH 1920*1080@30FPS |
Video Encoding | 10 CH 1920*1080@30FPS |
Image Decoding | 16 CH 1920*1080@30FPS |
Maximum Resolution | 8192*8192 |

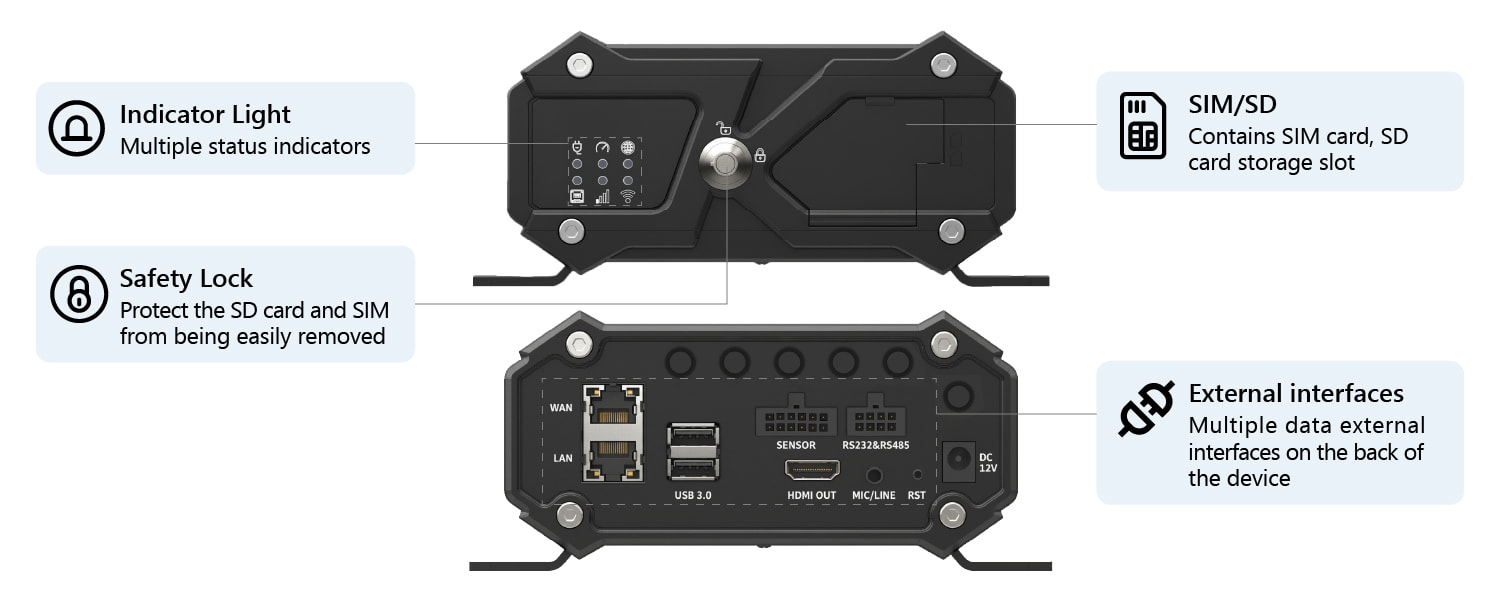

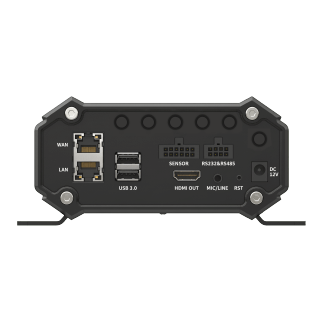

Interface | ETH 10/100/1000Mbps adaptve *2, |
USB3.0*2/HDMI2.0/Audio(in|out)/CAN/RS-232/RS-485/TF/GPIO/SATA3.0 | |
Optional Interfaces | LTE/4G/5G/Wi-Fi/BT |
Protection Rating | Passive cooling |
Power Consumption | 15W |
Working Temperature | -20℃~+60℃ |
Size | 182*143*71 mm |
Storage Temperature | -40°C~+85°C |
Protection Rating | IP41 |
